Newer codes address the minimum cage length and shear reinforcement and the need for fixity at the pile top. Material properties 1 CPT was carried out and the results are shown in the figure opposite.
A diameter of pile b length of pile c pitch of spirals spacing of spirals.
Bored pile reinforcement calculation. Therefore Total Cutting Length for Vertical Reinforcement Anchorage Length at the bottom of the pile the height of the pile development length 40d Lap length 50d clear cover provided at the bottom. L v 300 20000 40d 50d -75 300 20000 40 x 12 50 x 12 75 Total length of vertical reinforcement Lv 213m Note. During tying the bar it is recommended to tie.
Test profile is available. The pile foundation design involves determining the design length L of the piles. Geometry It has been decided to use bored piles with a diameter D 045m.
Material properties 1 CPT was carried out and the results are shown in the figure opposite. BS 8110 states that embedded piles need not be designed as columns and piles carrying axial load only need not be reinforced. Some rules are provided regarding calculation of axial forces which may be accommodated without reinforcement but no guidance is given on calculation of shear capacity.

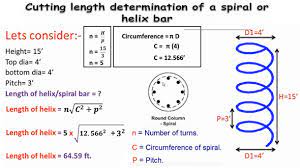

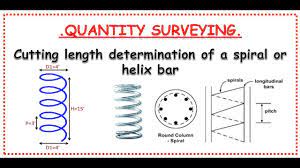

Where reinforcement is required BS 8110 is. To calculate the quantity of steel spirals or spiral ties in steel cage or sometimes rebar cage for piles reinforced concrete or bored pile you have to have the following informations check the details in the drawings. A diameter of pile b length of pile c pitch of spirals spacing of spirals.
Using the results fromTable B11the characteristic pile resistanceRck in the serviceabilitylimit state ULScan be determined for flexibleand stiff pilesinTable B12. Table B12 Deriving thecharacteristic pile resistance R ck in theultimatelimit statefor flexible and stiff piles x cm mean 1 R MN cm min 2 R x MN R ck MN. The timber should be in a good condition and should not have been attacked by insects.
For timber piles of length less than 14 meters the diameter of the tip should be greater than 150 mm. If the length is greater than 18 meters a tip with a diameter of 125 mm is acceptable. In This tutorial i tech how to you calculate or know of pile estimate of sand cement reinforcement and stone and step by step i show iti think if you.
Step 1 Calculate the Length of Vertical Bar. Cutting length of vertical bar Pile anchorage length Bottom Height of Pile Development Length Upper Lap Length50d Clear Cover bottom. As you know from the BBS for Column post Each rod will be 122 m or 39 Feet length.
So we have to lap additional bars in order to meet our requirement of 20 m height. Thats why we have added lap length 40d. Always tie the bars.
I design pile reinforcement everyday- determine moment and shear distribution and design like a beam-column. I use CSIcol or PCAcol w factored loads to determine the amount of reinforcement. Newer codes address the minimum cage length and shear reinforcement and the need for fixity at the pile top.
All designs should be fixed head unless the pile cap will rotate. Bored Pile Software is Compatible with Australian AS 2159-2009 American ACI 318-14. Up until now you needed one program for axial capacity another for lateral load analysis and yet a third program for reinforcement design.
SoilStructure Drilled Pier Software performs all of the above three calculations. In addition it computes torsional moment capacity vertical settlement and lateral deflection. Others may also refer this to drilled shaft bored pile.
The project was taken as final project because the research want to know more about foundation especially bored pile. The calculation is done is include the carrying capacity of the CPT and SPT test results the efficiency of pile groups displacement and reinforcement for. Adopting the pile load at a settlement of the top of the piles equal to 10 of the pile diameter as the ultimate resistance means using the measured resistances at a settlement of.
120 x 10100 x 103 120mm From the load-settlement graphs for each pile this gives. Pile 1 R m 214 MN Pile 2 R m 1 96 MN 196 MN Pile 3 R m 173 MN Pile 4 R.
