The input is exposed to the switch S1. For a buck converter it is obvious that IL Io Shadedareaunderwaveform AreaA 1 1 0 L DT L L v L v dt L i V V DT L g o 1 From iL we can obtain iLmin and iL maxmin 2 L L L i i I max 2 L L L i i I To obtain the average inductor current we can use the relationship R V I I o L o The peak-peak output voltage ripple vo.
Hence a buck converter.

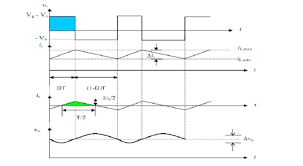

Buck converter waveform explanation. For a buck converter it is obvious that IL Io Shadedareaunderwaveform AreaA 1 1 0 L DT L L v L v dt L i V V DT L g o 1 From iL we can obtain iLmin and iL maxmin 2 L L L i i I max 2 L L L i i I To obtain the average inductor current we can use the relationship R V I I o L o The peak-peak output voltage ripple vo. A buck converter steps down the applied DC input voltage level directly. By directly means that buck converter is non-isolated DC converter.
Non-isolated converters are ideal for all board level circuits where local conversion is required. Fax machines scanners Cellphones PDAs computers copiers are all examples of board level circuits where conversion may require at any level inside the circuit. Hence a buck converter.
Therefore if the switching waveform has a mark to space ratio of 11 the output V OUT from the buck Converter circuit will be V IN x051 or half of V IN. However if the mark to space ratio of the switching waveform is varied any output voltage between approximately 0V and V IN is possible. The buck converter is a single-quadrant chopper as studied in Chapter 1 of Volume 2 PAT 15b.
The load is made up of an inductance L in series with the association of the actual load presumed to be a current source I s in parallel with a filtering capacitor C. The buck converter has the filter inductor on the output side which provides a smooth continuous output current waveform to the load. This could be considered a qualitative benefit but requires special considerations for big load transients.
The input is exposed to the switch S1. Therefore the input current is a highly dynamic waveform. The step down buck converter circuit can be further explained by examining the current waveforms at different times during the overall cycle.
In the diagram of the current waveforms for the buck converter switching regulator it can be seen that the inductor current is the. In this video Buck-boost converter circuit diagram is shown. And its working principle and waveform described in details and step by stepBuck-boost conve.
In a source the waveforms of the buck converter are given as. I am confused about the waveform of v_dS. On Wikipedia the waveform is shown constant.
How can the voltage change if the rate of current is constant. Did somebody see this before and has an explanation for me. Continuous mode discontinuous mode mathematical development.
Martin Ordonez and instructor Ignacio Galiano Zurbriggen in a lesson on the design and analysis of the buck-boost converter. This video introduces. The Buck Converter is used in SMPS circuits where the DC output voltage n eeds to be lower than the DC input voltage.
The DC input can be d erived from rectified AC or from any DC.
