Drive the transmitter with a low-impedance source OPAMP sweeping frequencies the receiver you connect to an oscilloscope through an OPAMP preferably - for isolation though not a must. These transducers send the electrical signals to the object and once the signal strikes the object then it reverts to the transducer.

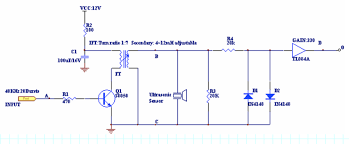

I suggest you use circuit similar to the below.
How to test an ultrasonic transducer. Piezoelectric transmitters generate a significant high voltage pulse to the piezoelectric crystal. In order to test the crystal it should be immersed in a bath similar to the envisioned cleaning bath dictated by hopefully a pre-planned design spec. Too great of pulse.

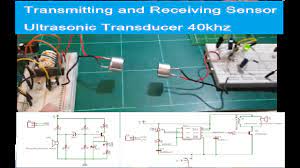

I can describe how I test ultrasonic transducers. As a receiver I connect a 40 kHz or 24 kHz device to an oscilloscope. I use a 555 as a tunable ultrasonic generator and connect a tested device to its output.
As I tune the generator around the expected frequency I can see on the scope the received voltage when the both devices are located close to each other. By tuning the voltage to a maximum I. The datasheet for an ultrasonic transmitter should include at least the maximum voltage specified either as peak-to-peak or RMS and may also include a plot of sound pressure level SPL vs.
Then connect an oscilloscope to the terminals of the transducer and check that its receiving the proper input. Drive the transmitter with a low-impedance source OPAMP sweeping frequencies the receiver you connect to an oscilloscope through an OPAMP preferably - for isolation though not a must. You watch the oscilloscope signal as you sweep the transmitter frequency.

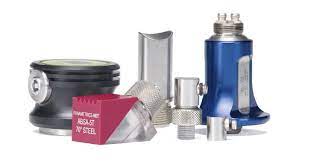

The high-frequency vibrations that are the basis of ultrasonic NDT commonly occur as either longitudinal waves particle motion parallel to wave direction or shear waves particl. In ultrasonic testing an ultrasound transducer connected to a diagnostic machine is passed over the object being inspected. The transducer is typically separated from the test object by a couplant such as oil or by water as in immersion testing.
What is an Ultrasonic Transducer. The ultrasonic transducer is one type of sound-related sensor. These transducers send the electrical signals to the object and once the signal strikes the object then it reverts to the transducer.
In this process this transducer measures the distance of the object not by the intensity of the sound. These transducers use ultrasonic waves for the. Transducer waveform and spectrum analysis is done according to test conditions and definitions of ASTM E1065.
Typical units are MHz for frequency analysis microseconds for waveform analysis and dB down from peak amplitude. Figure 4 illustrates waveform duration at the. There are three main aspects to working with ultrasonic measurements.
Generating a tone at the resonant frequency of your transducer Receiving the tone through a band-pass filter at the resonant frequency of your transducer Measuring the time between the sending of the tone and the reception of the echo. The functional tests consist of driving the transducer with a sine wave square wave pulse or spike depending on the intended use. This is usually done with an industry standard pulser-receiver sometimes through an amplifier.
This paper will discuss the implementations and limitations of an ultrasonic sensor. The primary goal of this sensor will be to monitor user presence by measuring the distance of an object from the sensor. Within this the ultrasonic sensor will send a serial signal through a driverreceiver to a computer to enhance information density.
This particular methodology for ultrasonic sensors. Designing an Ultrasonic Transducer The first step in designing a transducer is to determine the temperature the device will see over its lifetime. It is important to consider both the expected maximum transient temperature and the ongoing long-term use temperature.
The temperature constrains the Piezo material types which can be used. Ultrasonic Transducers - Measurements and Horn Design. If playback doesnt begin shortly try restarting your device.

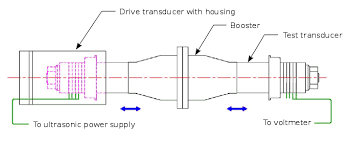

I suggest you use circuit similar to the below. The test circuit shown as below may be used to measure the resonant anti-resonant and impedance characteristics of ultrasonic transducers. Adjust frequency to obtain maximum EOUT.
Switch in VR and adjust to obtain the same output. VR now equals the minimum series impedance. By setting up your leakage meter for chassis leakage energizing the probe with the ultrasound system and inserting the nosepiece in the solution and completing the circuit by inserting your leakage probe into the solution and then lifting the ground you can test for transducer.
