This is also called the critical Reynolds number. For calculation of Reynolds number in closed pipe fluid flow average velocity fluid viscosity and internal pipe diameter should be known.
Flow in pipes is considered to be laminar if Reynolds number is less than 2320 and turbulent if the Reynolds number is greater than 4000.
Reynolds number flow in pipe. The accepted transition Reynolds number for flow in a circular pipe is Redcrit 2300. At Reynolds numbers between about 2000 and 4000 the flow is unstable as a result of the onset of turbulence. These flows are sometimes referred to as transitional flows.
Reynolds Number for Flow in Pipe or Duct. For a pipe or duct the characteristic length is the hydraulic diameter. L d h.
D h hydraulic diameter m ft The Reynolds Number for the flow in a duct or pipe can with the hydraulic diameter be expressed as Re ρ u d h μ u d h ν 2 where. Reynolds Number Pipe Flow ρOut VOut A d ρIN VIn In AOut Re ρV d ρA Q d Unitless Number µ µ ρV d Q m V d A m A V V d m d µ µ µ µ The Reynolds Re number is a quantity which engineers use to estimate if a fluid flow is laminar or turbulent. This is important because increased mixing and shearing occur in turbulent flow.
3 Zeilen Reynolds Number - a definition. Laminar when Re 2300. Transient when 2300 Re.
For flows in pipes a transition from laminar to turbulent flow takes place at Reynolds numbers around 2300. This is also called the critical Reynolds number. The transition from laminar to turbulent flow can range up to Reynolds numbers of 10000.
Laminar and turbulent flow in a. For calculation of Reynolds number in closed pipe fluid flow average velocity fluid viscosity and internal pipe diameter should be known. Reynolds number is proportional to fluid flow average velocity and pipe diameter and inversely proportional to fluid viscosity.
With Reynolds number calculator you can analyze what makes fluid flow regime laminar and what is needed to force the fluid to flow in the. The Reynolds number has broad applications in real life. It can describe liquid flow in a pipe flow around airfoils or an object moving in a fluid.

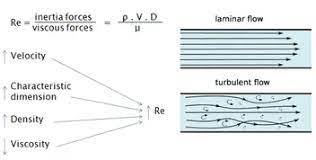

In the following text we have provided Reynolds number equation units discussion and comparison of laminar and turbulent flows. Reynolds number is a dimensionless number that is use to determine if a fluid has a laminar or turbulent behavior Laminar Flow. Behaves like formed by a set of thin sheets.
If we put a dye in the pipe we would see that it follows a line paralell to the pipe walls. It happens when Reynolds number is below 2100 in a. Less ratio designated as Reynolds number involving the various fac-tors influencing the numerical value of f or R S.

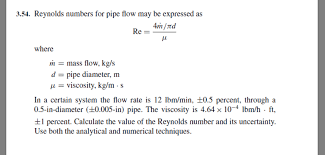

Dv 4mv 22 v v in which R Reynolds number d inside diameter of pipe in feet m mean hydraulic radius in feet v average fluid velocity in feet per second. DNS of pipe flow on the other hand have only recently become the focus of increased attention with the work by Wu and Moin 36. In that study the authors used a second order finite difference method to study the turbulence in a pipe of axial length 15R at a bulk-diameter based Reynolds number of Re b 44000friction Reynolds number.

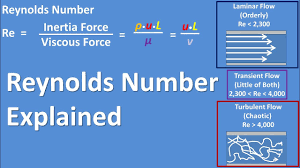

Flow in pipes is considered to be laminar if Reynolds number is less than 2320 and turbulent if the Reynolds number is greater than 4000. Between these two values is critical zone where the flow can be laminar or turbulent or in the process of change and is mainly unpredictable. The Reynolds number Re of a flowing fluid is calculated by multiplying the fluid velocity by the internal pipe diameter to obtain the inertia force of the fluid and then dividing the result by the kinematic viscosity viscous force per unit length.
Kinematic viscosity dynamic viscosityfluid density. This is an overview of flow in pipes. We use the ReynoldsNumber to relate friction vs.
Kinetic forcesReynolds may be manipulated in order to get an equation. 2100. However note that the value of Reynolds number Re at which turbulent flow begins is dependent on the geometry of the fluid flow which is different for pipe flow and external flow.
Equation for Reynolds Number. The Reynolds number can be used as a parameter to distinguish between laminar and turbulent fluid flow. The change from laminar to turbulent flow is usually assumed to occur at a Reynolds number of 2100 for flow in a circular pipe.
