The excitation signal E t. Definition of Total Harmonic Distortion THD Total Harmonic Distortion THD is the degree to which a current or voltage waveform is distorted.
In particular there are deviations from the typical sinusoidal variations in voltages or currents.
Total harmonic distortion definition. What Is Total Harmonic Distortion. The specification for Total Harmonic Distortion is one that compares input and output audio signals with the difference in stages measured as a percentage. So you might see a THD listed as 002 percent with specified conditions of frequency and equivalent voltage in parenthesis after it eg.

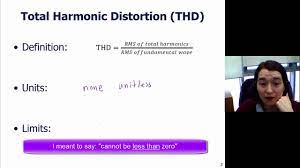

1 kHz 1 Vrms. Definition of Total Harmonic Distortion THD Total Harmonic Distortion THD is the degree to which a current or voltage waveform is distorted. Mathematically it is the ratio of the sum of values of all the harmonic components to the value at the fundamental frequency expressed as a percentage.
How Do Harmonics Alter the Waveform. Definition THD stands for Total Harmonic Distortion. The level of harmonic distortion is often used to define the degree of harmonic content in an alternating signal.
Total harmonic distortion THD is an important aspect in power systems and it should be kept as low as possible. Lower THD in power systems means higher power factor lower peak currents and higher efficiency. Total harmonic distortion or THD is the summation of all harmonic components of the voltage or current waveform compared against the fundamental component of the voltage or current wave.
Harmonic distortions are common voltage and current variations due to changes in frequencies within the electrical distribution systems. In particular there are deviations from the typical sinusoidal variations in voltages or currents. Total harmonic distortion THD also analyzes the nonlinear behavior of the system with the Fast Fourier transform FFT.
Total harmonic distortion plus noise THDN is defined as the ratio of the RMS value of the fundamental signal to the RMS value of the harmonics along with noise components. Thus this is all about Harmonic distortion. Total Harmonic Distortion Total harmonic distortion THD is a measure of the effective value of the harmonic components of a distorted waveform.
That is the potential heating value of the harmonics relative to the fundamental. This index can be calculated for either voltage or current. Total Harmonic Distortion is the percentage representing the amount of times the sine wave becomes distorted.
By taking the first wave in the series as being the constant each subsequent wave is measured comparing it to the first. Total harmonic distortion or THD is one way to gauge power supply quality. It indicates how much of a harmonic component the voltage and current waveforms contain and it serves as an indicator of the extent of the waveform distortion that is caused as a result.
One method to characterize the linearity of an amplifier is to measure its total harmonic distortion THD. Harmonic distortion is measured by applying a spectrally pure sine wave to the amplifier in a defined circuit configuration ie bias conditions output amplitude or output power level frequency etc and observing the output spectrum. The amount of distortion present at the output of the.
Total Harmonic Distortion is an extended version of Electrochemical Impedance Spectroscopy. Both techniques are based on a sinusoidal AC signal controlled current or controlled voltage which is applied to an electrochemical system. The excitation signal E t.

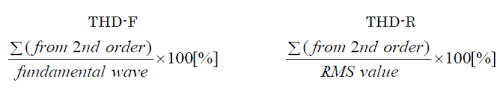

On the definition of total harmonic distortion and its effect on measurement interpretation Abstract. The existence of two different definitions for total harmonic distortion one in comparison to the fundamental and one in comparison to the signals root mean square might cause ambiguity and misinterpretation of measured data.
