Computer availability eliminated the need for TR-55 manual methods thus the manual portions graphs and tables of the user document have been eliminated as official guidance. Since the initial publication predated the widespread use of computers TR-55.

Up to 10 reaches.

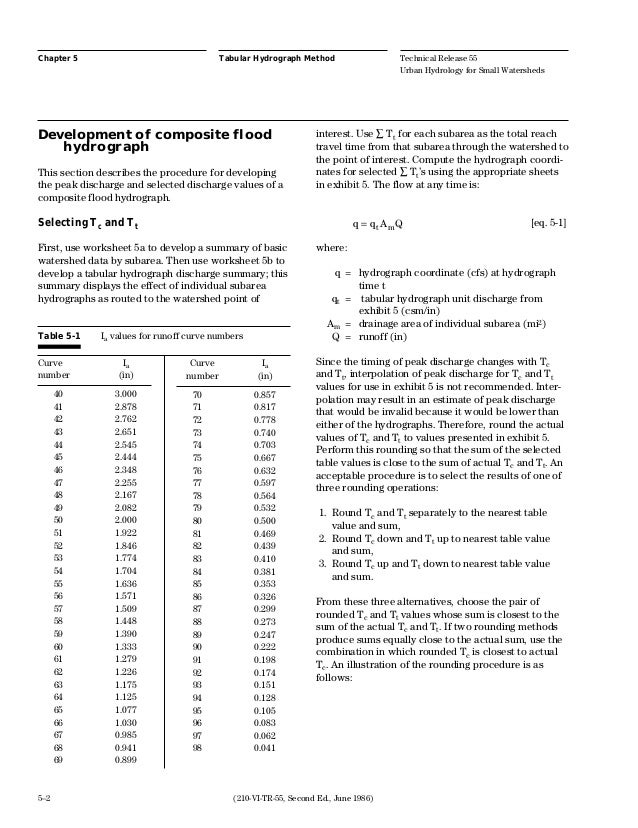

Tr 55 table 3 1. 210-VI-TR-55 Second Ed June 1986 i Preface Technical Release 55 TR-55 presents simplified procedures to calculate storm runoff volume peak rate of discharge hydrographs and storage volumes required for floodwater reservoirs. These procedures are applicable in small watersheds especially urbaniz-ing watersheds in the United States. Chapter 3 210-VI-TR-55 Second Ed June 1986 31 Technical Release 55 Urban Hydrology for Small Watersheds Chapter 3 Time of Concentration andTime of Concentration and Travel Time Travel Time Travel time T t is the time it takes water to travel from one location to another in a watershed.

T t is a component of time of concentration T. Appendix 4B TR-55 Curve Number Tables WSDOT Highway Runoff Manual M 31-1604 Page 4B-3 April 2014 Table 4B-1 Hydrologic soil series for selected soils in Washington State continued. Soil Type Hydrologic Soil Group Soil Type Hydrologic Soil Group Tisch D Whidbey C Tokul C Wilkeson B.

5 Composite CNs to use for the design of temporary measures during grading and construction should be computed using figure 2-3 or 2-4 based on the degree of development imperviousness area percentage and the CNs for the newly graded pervious areas. SCS TR-55 Table 2-2b Runoff curve numbers for cultivated agricultural lands 1. The TR-55 computer model has been revised and completely rewritten.

As a windows based program the input and editing windows are a big improvement over the DOS version. The new WinTR-55 uses the WinTR-20 program as the driving engine for more accurate analysis of the hydrology of the small watershed system being studied. 1 TR-55 is perhaps the most widely used approach to hydrology in the US.

Originally released in 1975 TR-55 provides a number of techniques that are useful for modeling small watersheds. Since the initial publication predated the widespread use of computers TR-55. Technical Release 55 TR-55 Urban Hydrology for Small Watersheds was first issued in January 1975 as a simplified procedure to calculate the storm runoff volume peak rate of discharge hydrographs and storage volumes required for storm water management structures SCS 1975.

The limitations are reproduced from TR-55 in Figure 3. To use a relationship other than Ia 02S one must redevelop equation -Curve numbers describe average 2-3 figure 2-1 table 2-1 and conditions that are useful for table 2-2 by using the original design purposes. If the rainfall rainfall-runoff data to establish event used is a.

Chapter 2 210-VI-TR-55 Second Ed June 1986 27 Technical Release 55 Urban Hydrology for Small Watersheds Estimating Runoff Table 2-2c Runoff curve numbers for other agricultural lands 1. Table 41 TR55 Manual. 9262016 2 Equation 23 Figure 21 TR55 Manual Change in Runoff Depth Table 21 TR55 Manual.

9262016 3 What Happens When Adjusted HSGs. This number represents the sheet flow time computed for each column of sheet flow data. Flow time for sheet flow is computed as.

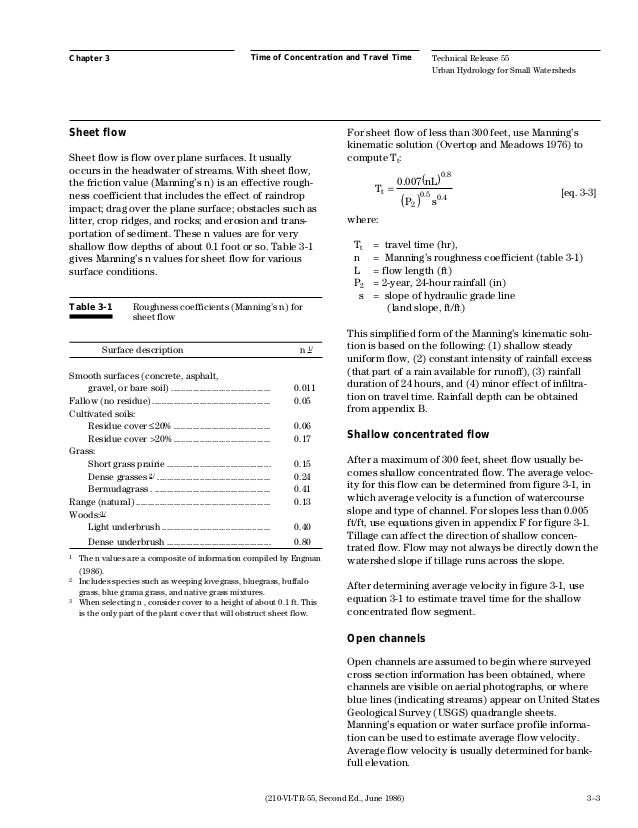

T Sheet flow time hr n Mannings roughness coefficient from TR-55 table. Computer availability eliminated the need for TR-55 manual methods thus the manual portions graphs and tables of the user document have been eliminated as official guidance. The WinTR-55 user manual NRCS 2002a covers the procedures used in and the operation of the WinTR-55 computer program.
