Following calculator 2 takes round trip time and sound speed as inputs and calculates distance. Time taken by pulse is actually for to and from travel of ultrasonic signals while we need only half of this.
Section 913 provides guidance for reduction or elimination of the storage volumes as defined below.
Ultrasonic dead zone calculation. The calculations of the three dead zones are derived from relatively simple trigonometric equations. The ring time near the test surface is defined by the pulse-duration. Tp is the pulse duration to where the amplitude is 10 of peak S is half the PCS c is the velocity of sound of the mode used.
Reduction of lateral wave dead zone is by decreasing PCS or use probes with shorter pulse. Dead Zone calculation. There is always a minimum thickness for any particular UT setup where the results are not sensitivewhich is behalf of the interference effect close to the transducerwhich we call as dead zone How to calculate the dead zone If somewhere i am wrong in my concept please rectify me Thanks to you all in advance.
Reply Translate - Anmol Birring Consultant Birring NDE. Deadzone Height Calculation The distance from the bottom at which there is a bias H BotBias associated with both processes therefore depends on pulse duration angle to the fish and depth see Ona and Mitson 1996 as follows. An ultrasonic level transducer cannot generate an ultrasonic signal and simultaneously detect a signal returning from a target.
Because of this there is an inherent dead-zone near the sensor face where signal echoes are returned too quickly to be distinguished from the transmitted signal. This dead-zone is known as the blanking distance and extends anywhere from a few inches to more than. The number of cycles completed in one second is called frequency f and is measured in Hertz Hz some examples follow.
1 cyclesecond 1Hz 1000 cyclessecond 1kHz 1000000 cyclessecond 1MHz The time required to complete a full cycle is the period T measured in seconds. Time taken by pulse is actually for to and from travel of ultrasonic signals while we need only half of this. Therefore time is taken as time2.
Distance Speed Time2. Speed of sound at sea level 343 ms or 34300 cms. Thus Distance 17150 Time unit cm.
So the dead zone defines the short distance between the device and the product surface where the signal returns too fast for the device to receive. We call the dead zone from the upper edge of the tank the upper dead zone naturally. So you can figure that we call the distance from the bottom of the tank the lower dead zone.

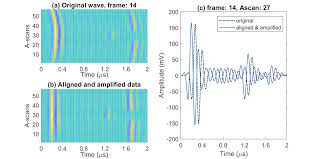

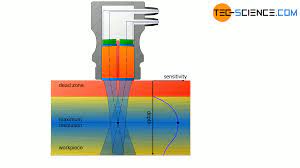

A dead zone refers to the area directly in front of the transducer face where the sensor cannot reliably make measurements. This is due to a phenomenon called ringing. Ringing is the continued vibration of the transducer after the excitation pulse.
The energy must dissipate before the transducer can listen for a return echo. Make sure to locate your target outside of the specified dead zone of your. No objects or disturbing reflectors should be placed in the blind zone because this can lead to incorrect measurements.
Given in the diagrams specify the distance at which the ultrasonic sensor can measure common reflectors with sufficient operating reserve. The sensor can also be employed for distances up to its maximum range in the case of good reflectors. Vide effective transfer of ultrasonic wave energy between transducers and parts being inspected.
Reference standards are needed in many applications both for calibrating the equip-ment and for characterizing flaws. Ultrasonic inspection is routinely applied to large parts such as those with thicknesses of more than a meter and in the axial inspection. Ultrasonic sensor time calculation 1.
Speed of Sound 0034 cmµs Distance 5 cm Output. Round Trip Time 294 µs Ultrasonic sensor calculator 2. Following calculator 2 takes round trip time and sound speed as inputs and calculates distance.

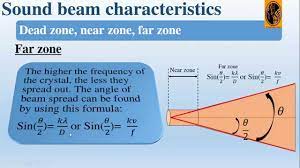

The higher the frequency the smaller the beam spread. The K value selected can actually vary according to the point at which the beam spread is calculated. The different values to be used are shown below.
At the edge of the beam the sound energy is 110 -20dB of the energy at the beam centre and K is 108. Beam Spread Half Angle. Decibel dB Gain or Loss.
